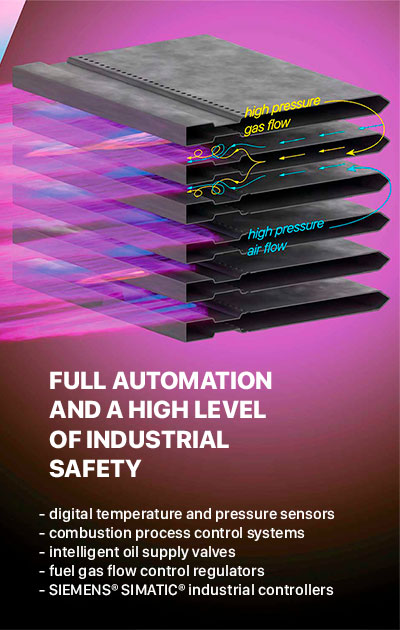

Stream-Niche® Technology of Fuel Combustion Burners with innovative combustion technology provide high-quality mixing for efficient burning of fuel gas.
full automation and a high level of industrial safety - digital temperature and pressure sensors - combustion process control systems - intelligent oil supply valves - fuel gas flow control regulators - SIEMENS® SIMATIC® industrial controllers
Stream-Niche® Technology of Fuel Combustion. Burners with innovative combustion technology provide high-quality mixing for efficient burning of fuel gas.

Full automation and a high level of industrial safety.

  •  digital temperature and pressure sensors
  • combustion process control systems
  • intelligent oil supply valves
  • fuel gas flow control regulators
  • SIEMENS® SIMATIC® industrial controllers

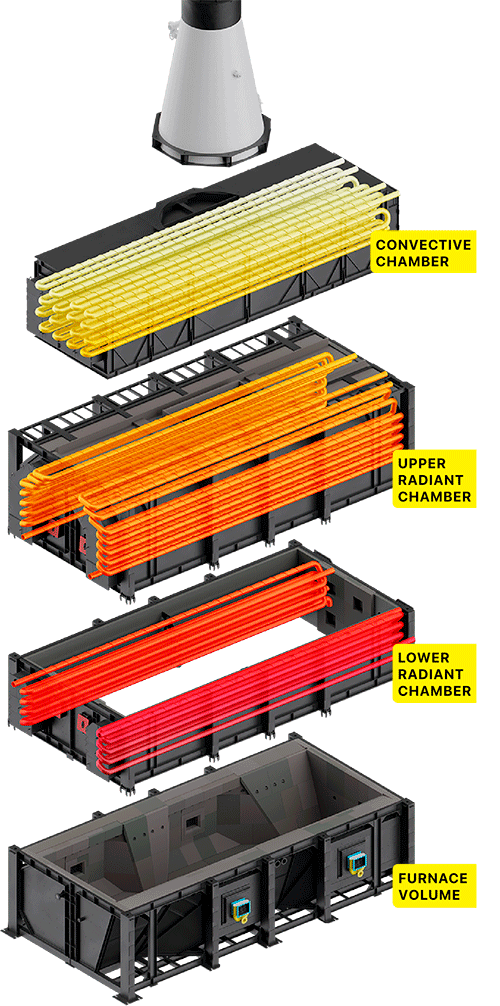

MODULAR DESIGN

  • Ease of transportation quick installation
  • in the field replacement of any module
  • during major repairs.
  • Convective chamber
  • Upper radiant chamber
  • Lower radiant chamber
  • Funace volume

EFFICIENT PROCESS OF ENERGY TRANSFER FROM COMBUSTION PRODUCTS TO HEAT REMOVAL SURFACES

convective chamber upper radiant chamber lower radiant chamber furnace volume

MULTILAYER BLOCK LINING OF THE FURNACE VOLUME

Technical specifications EU metrics US metrics
Useful thermal power of 8 Gcal/h 31.7466 MMBTU/h
Consumption of the heated product at ∆t=40°C 600 m3/h 158 500 gal/h
The maximum pressure of the product at the entrance to the furnace is 63 kgf/cm2 896 psi
Number of burners 4 pcs 4 pcs
Gas consumption at the maximum mode of 1 000 m3/h 264 170 gal/h
Availability of a recursion system yes yes
Furnace efficiency 85% 85%
Climate conditions -40°С...+50°С -40°F...+120°F
Overall dimensions

length - 16,4 m

width - 7,5 m

height - 22 m

length - 53.8 ft

width - 24.5 ft

height - 72.2 ft

RECUPERATION

The system for returning part of the thermal energy by heating the blasting air is the most rational and fast-paying way to save fuel and increase efficiency

WE WERE ABLE TO MEET THE HIGH ENVIRONMENTAL REQUIREMENTS FOR CO2 EMISSIONS INTO THE ATMOSPHERE AT THE LEVEL OF 20 PPM
